Carbon Steel SCH80 ASME 90 Degree Elbow Fitting

Product Categories
Hebei Shengtian Pipe Fittings Group Co., Ltd.
Contact Now

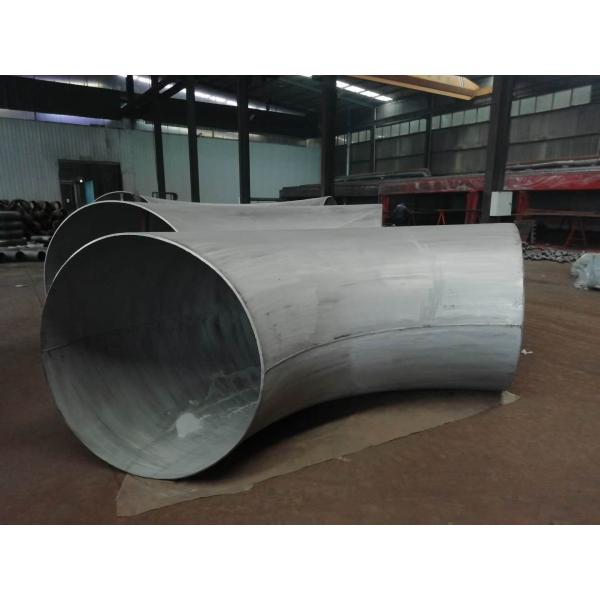

Carbon Steel SCH80 ASME 90 Degree Elbow Fitting

  • 1
  • 2

Brand Name : Shengtian

Model Number : pipe fitting 001

Certification : ISO9001

Place of Origin : China

MOQ : 1 piece

Price : 1~100 US $6.7/ Piece >100 US $4.5/ Piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 20000000

Delivery Time : 15 DAYS

Packaging Details : In woonden cases or in pallet

Radius : LR SR

Standard : DIN JIS BS EN ASTM ASME

Material : carbon steel

Size : 1/2 inch to 72 inch

Degree : 30 45 60 90 180

Thickness : sch80

Contact Now

Black Sch80 Seamless 45 90 Degree Lr Sr Forged Carbon Steel Pipe Fitting Elbow

Model NO.: carbon steel pipe fittings
Shape: Equal
Angle: 90 Degree
Material: Stainless Steel
Certification: ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API
Size: up to 48"
Specification: GB12459/ASME/DIN/JIS
Connection: Welding
Head Code: Round
Wall Thickness: Sch80s
Technics: Cold Forming
Color: Black
Trademark: Shengtian
Origin: China

Carbon Steel SCH80 ASME 90 Degree Elbow Fitting

Pipe Size Outside Diameter 90 Deg Elbows, 45 Deg Elbows,
(NPS) DN at Bevel A B
1 25 33.4 38 22
11⁄4 32 42.2 48 25
11⁄2 40 48.3 57 29
2 50 60.3 76 35
21⁄2 65 73 95 44
3 80 88.9 114 51
31⁄2 90 101.6 133 57
4 100 114.3 152 64
5 125 141.3 190 79
6 150 168.3 229 95
8 200 219.1 305 127
10 250 273 381 159
12 300 323.8 457 190
14 350 355.6 533 222
16 400 406.4 610 254
18 450 457 686 286
20 500 508 762 318
22 550 559 838 343
24 600 610 914 381
26 650 660 991 405
28 700 711 1067 438
30 750 762 1143 470
32 800 813 1219 502
34 850 864 1295 533
36 900 914 1372 565
38 950 965 1448 600
40 1000 1016 1524 632
42 1050 1067 1600 660
44 1100 1118 1676 695
46 1150 1168 1753 727
48 1200 1219 1829

759

Products Show

Carbon Steel SCH80 ASME 90 Degree Elbow Fitting

Carbon Steel SCH80 ASME 90 Degree Elbow Fitting


Product Tags:

ASME 90 Degree Elbow Fitting



SCH80 90 Degree Elbow Fitting



ASME 90 Degree Hose Elbow


Wholesale Carbon Steel SCH80 ASME 90 Degree Elbow Fitting from china suppliers

Carbon Steel SCH80 ASME 90 Degree Elbow Fitting Images
